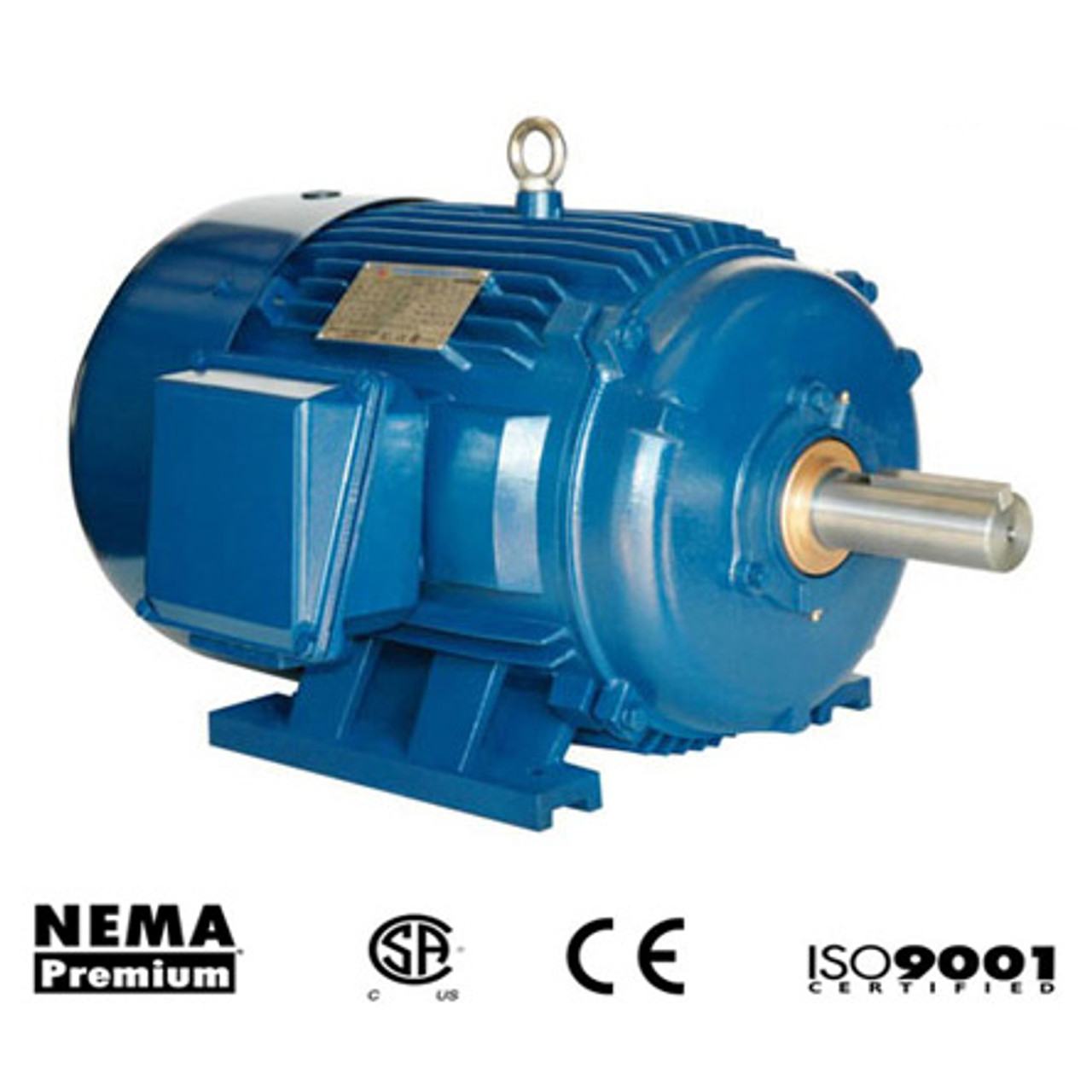

Description
Standard Features
- Meets or exceeds NEMA Premium® Efficiency Requirements defined by NEMA MG-1, Table 12-12
- Class I, Div II Groups ABCD, T2B
- Suitable for wye-delta start on 213T frame and above
- 1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz
- Inverter Duty (20:1 variable torque; 10:1 constant torque)
- Vacuum Pressure Impregnation for all windings
- Sealed bearings thru 215T frame
- Greasable bearings 254T frame and above
- Mechanical “V” Seal on drive end
- Class F insulation system, class B rise at full load
- 40° C ambient continuous duty
- Corrosion resistant paint
- Stainless steel nameplate and zinc plated hardware
- F1/F2 reversible
- Feet are dual drilled on most frames for mounting flexibility
- Cast iron frame construction including the conduit box
- C-Flange and D-Flange field conversion kits available
- Lifting provisions on 143T frame and above
- Condensation drains with plastic plugs
- IP55 Protection – Terminal box is sealed for IP66 protection
- CSA + C + US Certification
- ISO 9001 Certification
Product Details:
| Weight | 289 lbs |
|---|---|
| HP |
15 |
| RPM |
1800 |
| Frame |
254T |
| Mult. Sym. |
M16 |
| Volts |
575 |
| Frame Type |
NEPE |
| Enclosure |
TEFC |
| F.L. Eff. |
92.4 |
| "C" Dim. |
25 |
| Notes |
1,2,3,5 |
| F.L. Amps |
15 |
This motor is a direct replacement for these motors :
Baldor M2333T & Leeson G150066
Applications
Air Curtains | Air Filters | Amusement Park Equipment | Augers | Blowers | Boilers | Buffers | Chippers | Collectors | Compactors | Compressors | Converters | Dryers | Dust Collectors | Fans | Farm Equipment | Feeders | Generators | Heaters | Hoppers | Ice Makers | Mixers | Polishers | Presses | Pressure Washers | Pumps | Recycling Equipment | Sprayers | Vacuums
