Description

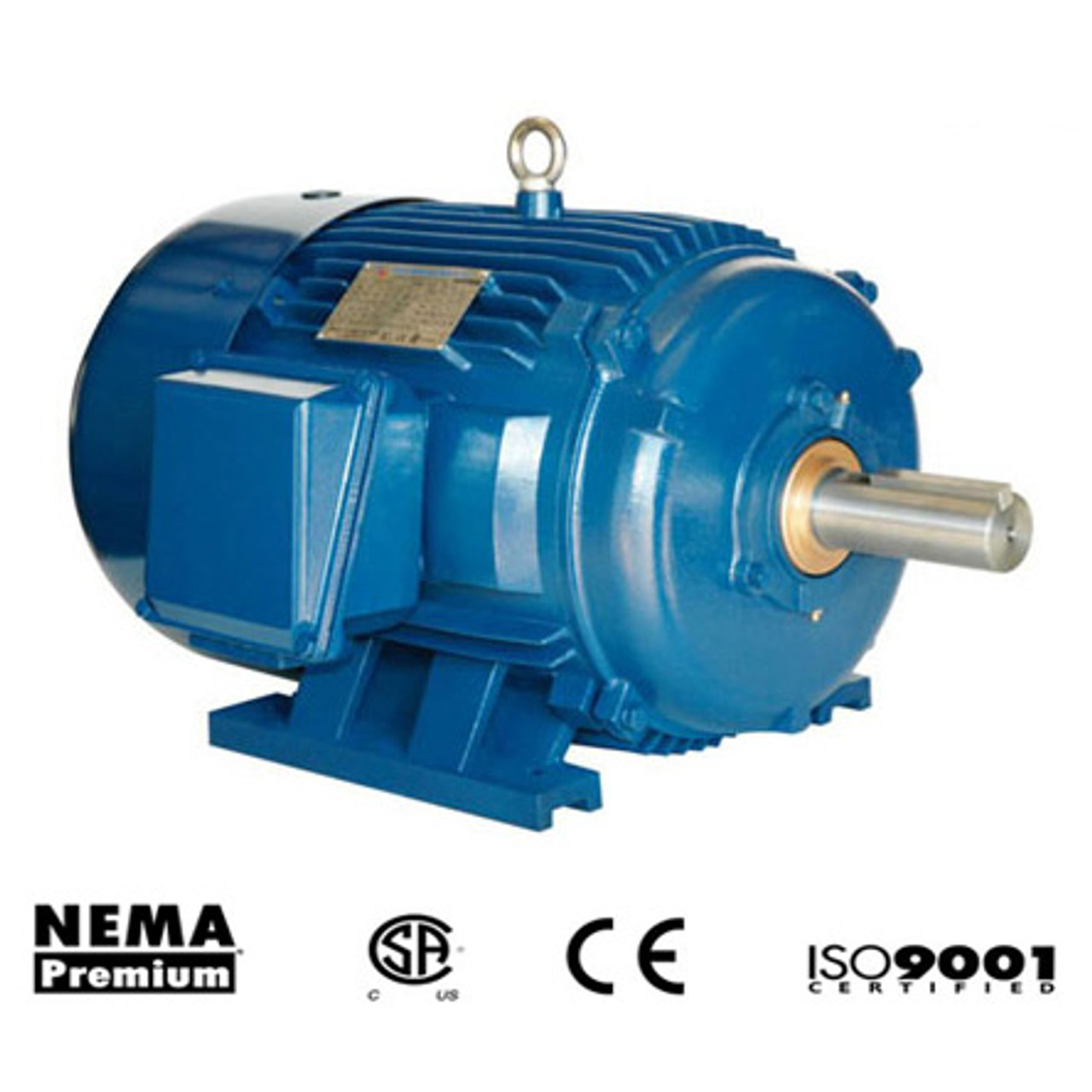

Features of the EM1.5-18-145T Three Phase T-frame Motor
- Meets or exceeds NEMA Premium® Efficiency Requirements defined by NEMA MG-1, Table 12-12
- Class I, Div II Groups ABCD, T2B
- Suitable for wye-delta start on 213T frame and above
- Dual voltage ratings suitable for part wind start on lower voltage
- 1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz
- Suitable for 575V @ 1.0 Service Factor
- Inverter Duty (20:1 variable torque; 10:1 constant torque
- Vacuum Pressure Impregnation for all windings
- Sealed bearings
- Class F insulation system, class B rise at full load
- 40° C ambient continuous duty
- Corrosion resistant paint
- Stainless steel nameplate and zinc plated hardware
- F1/F2 reversible
- Feet are dual drilled on most frames for mounting flexibility
- Lifting provisions
- Condensation drains with plastic plugs
- IP55 Protection Β Terminal box is sealed for IP66 protection
- CSA + C + US Certification
- ISO 9001 Certification
Check out the 145T row on this NEMA Chart for your basic mounting dimensions
Product Details:
| Weight | 62 lbs |
|---|---|
| HP |
1.5 |
| RPM |
1800 |
| Mult. Sym. |
M16 |
| Frame |
145T |
| Volts |
208-230/460 |
| Enclosure |
TEFC |
| F.L. Eff. |
86.5 |
| Notes |
1,2,5 |
| "C" Dim. |
13.6 |
| F.L. Amps |
2.2 |
The EM1.5-18-145T three phase T-frame motor is a direct replacement for:
- Baldor M3554T
- Leeson G151702
- TECO N1/54
- US Electric ELT32E2D
- Marathon E837
- WEG 00158EP3E145T
